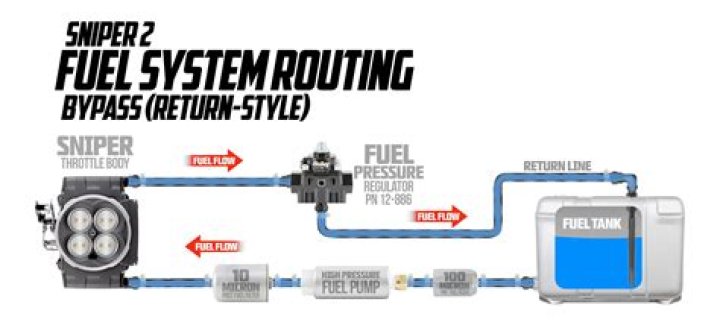

A return style fuel system does it mechanicallywith use of a fuel pressure regulator. Typically, pumps arerun at maximum voltage supplying as much fuel as they can.The FPR then returns excessive fuel back to the tank.A returnless fuel system does it electronically with a FRPSand FPDM.

.

In this way, how does a Returnless fuel system work?

Returnless-Style Fuel Systems A returnless fuel system uses an in-tank pumpand regulator. A single fuel line exits the tank and travelsto the engine. To regulate the fuel pressure, the ECU simplyadjusts the pump speed or fuel injector rate. From an automanufacturer's standpoint, it requires one less fuelline.

Additionally, what is a Deadhead style fuel system? In essence, a deadhead regulator is merely arestriction in the fuel line that lowers fuelpressure between the tank and the carburetor by decreasingfuel flow.

Also to know is, what does a fuel return line do?

It's primary purpose is to return excessfuel from the carburetor to the fuel pump, however itserves other important functions as well. Aside from providing apath for excess fuel to return to the tank, thefuel return hose also prevents vapor lock and overpressurization from occurring within the carburetor.

How can you tell if you got a bad fuel injector?

However, sometimes they do go bad, and given below are someof the symptoms of a bad fuel injector:

  1. Check Engine Light:
  2. Rough Engine Idle:
  3. Gasoline Leak:
  4. Poor Fuel Economy:
  5. Odor and Temperature:
  6. Surging Engine:
  7. Misfiring Engine:
  8. Vibrating Engine:
Related Question Answers

Where does fuel return line go?

They are designed to transfer the unused fuelfrom the fuel rail back to the fuel tank. Gasolineengines use 60 percent of the fuel and return 40percent of the fuel back to the fuel tank. Dieselengines use 20 percent of the fuel and return 80percent of the fuel back to the tank.

How do you test a fuel injector?

Part 1 Listening for Bad Fuel Injectors
  1. Put on the appropriate safety gear.
  2. Open the hood and locate your fuel injectors.
  3. Find a long metal rod or screwdriver.
  4. Place the tip of the rod on a fuel injector.
  5. Bring your ear close to the rod and listen for clicking.
  6. Repeat these steps for each injector.

How does a fuel system work?

The function of the vehicle fuel system is tostore and supply fuel to the engine. The engine intakesystem is where the fuel is mixed with air, atomized,and vaporized. A return type system has a fuelpressure regulator that varies the fuel pressure based onthe amount of vacuum from the intake system.

What does a boost a pump do?

A boost-a-pump is a fuel pump upgrade thatincreases the amount of fuel a pump can flow. It works byincreasing voltage to the factory or aftermarket pumpsalready installed. By increasing fuel pump voltage, you canincrease the amount of fuel supplied to the engine.

Do you need a return line on a mechanical fuel pump?

You don't need it with a mechanicalpump. Mechanical pumps supply fuel based on RPM,and so long as you're not running a big hipo mechanicalpump, you're fine without a return. Edit: Keep inmind that the pump doesn't create pressure, resistance toflow does.

What causes vapor lock?

It's a uniquely modern problem. Vapor lockhappens when your fuel boils in your carburetor or your fuel line.Vaporized fuel creates back pressure in your fuel system andprevents gas from getting to your engine. It commonly occurs when acar has been idling or has been turned off and then backon.

How do you clean fuel injectors?

Steps
  1. Purchase a fuel injector cleaner kit with a PEA cleaningfluid.
  2. Review your vehicle's engine layout to locate the fuelinjectors.
  3. Disconnect the fuel pump from the fuel injectors.
  4. Disconnect the pressure regulator vacuum line if you haveone.
  5. Connect the cleaning kit to the fuel port.

What are the types of fuel system?

The fuel injection types used in newer cars include fourbasic types:
  • Single-point or throttle body injection.
  • Port or multipoint fuel injection.
  • Sequential fuel injection.
  • Direct injection.

Does a fuel return line have pressure?

When you stick a fuel pressure sensor on the endof a rail, it is reading the pressure inside of the rail. Areturnless system does just as the name implies and doesn'treturn fuel to the tank. Return style systems willbleed excess fuel back to the tank through theregulator.

What should my fuel rail pressure be?

The components serve distinct functions: the pumppressurizes the fuel from about 3-4 bar (40-60 psi) tobetween 100-300 bar (1500-4500 psi). The fuel injectorsspray the fuel directly into the cylinders.

What is the symptoms of a bad fuel pressure regulator?

Engine Misfire It could be because of the ignition system, a problemwith the manifold gasket, damages in the vacuum lines, and a badfuel pressure regulator. The engine will run rough and end upmisfiring when the fuel pressure regulator isproblematic.

What is the average range of pressures for fuel pumped from the tank in a fuel injection system?

The intake is only slightly wet, and typical fuelpressure runs between 40-60 psi. Many modern EFI systemsuse sequential MPI; however, in newer gasoline engines, directinjection systems are beginning to replace sequentialones.

Where is the fuel pressure regulator located on a Returnless fuel system?

Engines with “returnless” electronicfuel injection (EFI) systems have theregulator inside the fuel tank. The regulatoris part of the fuel pump assembly and is usuallylocated downstream of the in-tank fuelfilter.

How does the fuel pressure regulator work?

When pressure (boost) is applied to the top ofthe regulator, the diaphragm, which is attached to thebypass valve, a spring forces the diaphragm down and reduces theamount of excess fuel, this makes the fuel pumpswork harder while the fuel pressure increaseslinearly towards the increasing boost pressure fromthe

How do you regulate fuel pressure?

Adjusting: Engine should be at idle when adjusting thefuel pressure. Loosen nut on top of regulator while holdingscrew in a fixed position with an Allen wrench. To raise thefuel pressure, turn screw clock- wise. To lowerpressure, turn screw count- er-clockwise.

How does a non return fuel pressure regulator work?

Non-return style regulators arecharacterized by their lack of a fuel return line from theregulator back to the fuel tank. Fuel flow andpressure are controlled by the fuel control valvethat is actuated by a diaphragm (D). The diaphragm's movement upand down is limited by a spring (E).

What are the symptoms of having air in the fuel line?

Air bubbles in a fuel line can lead tostalling, hiccuping or refusal to start. Keep your fuellines free of air to help keep your car runningsmoothly.

How do I get rid of an airlock in my fuel system?

To start the process, locate the manual fuel pumpprimer on the engine. This may be a small lever youpump up and down, or a plunger-type you push in. Open up thebleed screw on top of the secondary fuel filter, and startpumping the primer pump. You will likely see bothfuel and bubbles coming out of the bleedscrew.

How do I know if my fuel line is clogged?

Clogged Fuel Line Symptoms
  1. Trouble Starting. The fuel line is part of the fuel system, sothe first sign of a clogged or blocked fuel line is difficultystarting the car.
  2. Smoke in the Car. Smoke in the car is a dangerous sign of aclogged fuel line.
  3. Engine Switching Off.
